Solar Water Pump Structure
Overview Of Solar Water Pump Structure
Solar water pump structures are specially designed mounting systems that hold solar panels to power submersible or surface pumps. These structures are commonly used in irrigation, livestock watering, rural drinking water supply, and community water schemes. Built for outdoor use, they are made to last in tough field conditions, ensuring a stable base for solar modules. With proper orientation and tilt, they help maximize solar energy use, improving the efficiency of water pumping systems while supporting sustainable farming.
Made from high-quality mild steel with hot-dip galvanization, these structures are resistant to rust and wear, offering a lifespan of 20–25 years. They come in ground-mounted, rooftop, and portable options to suit different needs. With a fixed tilt angle of 15°–25°, the panels get maximum sunlight throughout the year. The structures can withstand wind speeds of up to 150 km/h and are easy to install using RCC foundations or precast blocks. They are compatible with pumps ranging from 0.5 HP to 10 HP and meet MNRE and IS standards, making them ideal for reliable, long-term use in rural applications
1000
Structures Daily Production Capacity
35 lakh
Solar Water Pumps Across India
8 lakh +
Structures Supplied
Product Specifications
Technical
Solar water pump structures are robust mounting systems designed to hold PV modules for powering submersible or surface pumps in rural and agricultural areas.
Purpose & Design : Supports PV modules for solar-powered water pumping in irrigation, livestock, drinking water, and rural supply schemes. Easy installation with minimal maintenance.
Materials & Coating : Made from Mild Steel (IS 2062 / Q235B) with Hot Dip Galvanization (HDG) for 20+ years. SS 304/316 fasteners resist corrosion.
Tilt & Orientation : Fixed tilt of 15°–25°, optimized for local solar radiation. South-facing orientation maximizes solar gain, with optional manual seasonal adjustment.
Installation Types : Available as ground-mounted, rooftop, or portable structures. Foundations include RCC grouting, precast blocks, or pole-mounted supports for flexibility.
Load & Durability : Designed to withstand wind loads of 130–150 km/h and snow loads of 1–1.5 kN/m². Structural life matches PV modules at 20–25 years.
Assembly & Foundations : Pre-fabricated components simplify on-site assembly. RCC pedestal or direct pole embedding ensures stability and low-maintenance access for panel cleaning.
Compliance & Customizatio : Supports pumps 0.5–10 HP (AC/DC, surface & submersible). Compliant with IS 800, IS 875, ASCE7. Options for single-array, dual-array, or pole-mounted configurations.
Key Features
Raydean solar water pump structures combine durability, efficiency, and ease of installation to deliver reliable pumping performance in rural and agricultural projects.
High-Strength Construction : HDG mild steel frame with stainless steel fasteners ensures long-term corrosion resistance and robust structural stability.
Adjustable Tilt Options : Some models allow seasonal tilt adjustments to maximize water output per horsepower, increasing efficiency by 15–20%.
Versatile Installation : Supports multiple installation types: ground, rooftop, and portable, suitable for diverse terrains and rural conditions.
Weather & Load Resistance : Engineered to resist wind speeds up to 150 km/h and snow loads up to 1.5 kN/m² for reliable operation.
Easy Maintenance : Prefabricated modular design enables quick assembly and convenient access for panel cleaning and periodic inspections.
Wide Pump Compatibility : Supports solar pumps from 0.5 HP to 10 HP for AC/DC and surface/submersible applications.
MNRE & Scheme Compliance : Compatible with PM-KUSUM and other MNRE-supported programs for solar-powered irrigation and rural water supply.
Product Advantages
Raydean solar water pump structures offer high performance, durability, and reliability, empowering farmers and rural communities with sustainable water solutions.
Efficient Energy Utilization : Optimized tilt and orientation enhance PV output, ensuring consistent water pumping with minimal energy loss.
Long Service Life : Durable HDG steel construction and anti-corrosive coatings provide 20–25 years of maintenance-free performance.
Flexible & Scalable : Available in single-array, dual-array, or pole-mounted configurations, easily adaptable to project requirements.
Cost-Effective Solution : Reduces reliance on diesel/electric pumps, lowering operational costs while promoting renewable energy adoption.
Rural & Agricultural Focus : Designed for dusty, high-moisture, and agricultural environments, delivering reliable performance even in challenging field conditions.

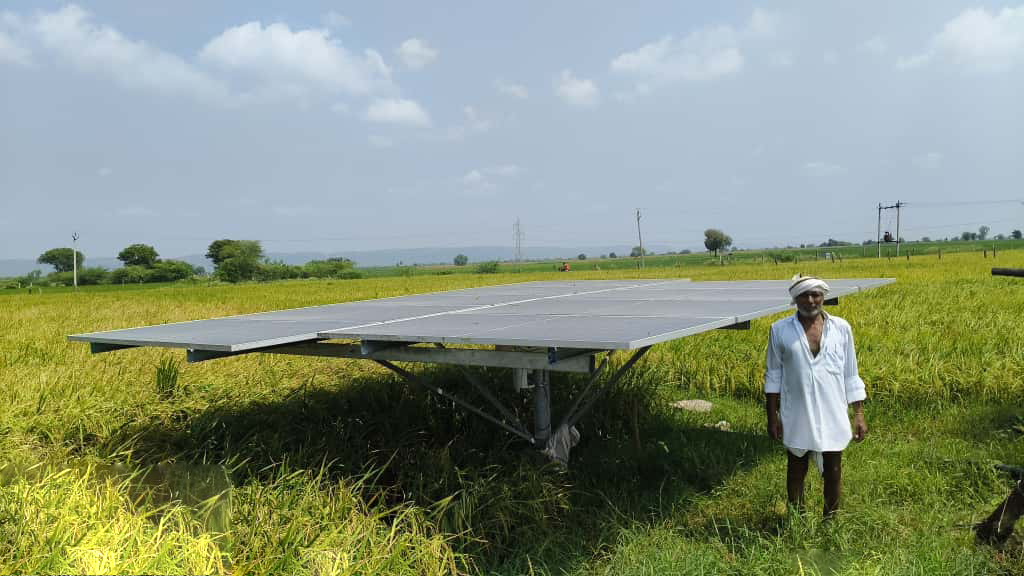

MNRE Approved Water Pumping Structures for PM Kusum Yojana
Ready to start your project with reliable and sustainable solutions? Get in touch today.
Why Choose Us
Raydean believes in quality, reliability, and sustainability. We offer reliability in our long-lasting solutions while building a strong reputation for service and customer satisfaction. Raydean also helps build smart, green, efficient infrastructure for homes, offices, and industries.
We make your projects easier, more durable, and more reliable.
Solutions you can trust for today and tomorrow.
Creating better infrastructure through care, skill, and commitment.
We deliver quality and simplicity with every project we undertake.
Agriculture Application
Raydean plays a key role in sustainable agriculture with its solar structures for agricultural applications. Our mounting systems for solar water pumps facilitate effective irrigation by ensuring consistent, off-grid power for surface pumps and borewells. This minimizes reliance on fuel generators and guarantees a steady water supply to farms, including remote ones.

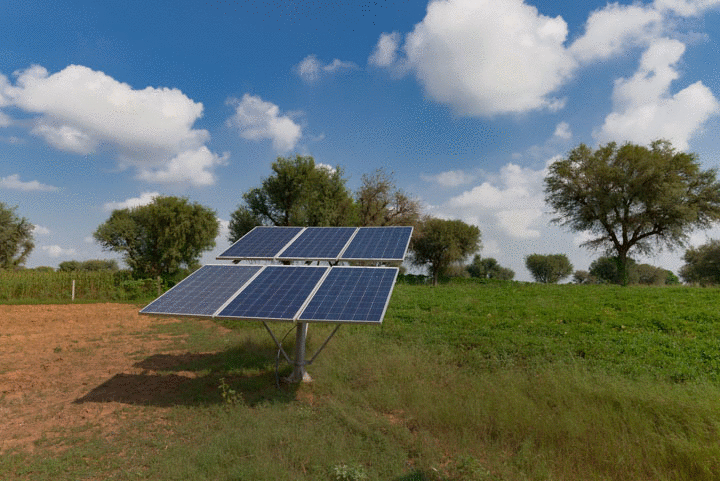

Besides, our solar water tank buildings provide a cost-effective solution for water storage and distribution in irrigation and livestock. Other products include solar fencing and solar trackers. Raydean also provides agrivoltaic structures, facilitating double land use by integrating crop cultivation and power generation from solar energy. The solutions enable farmers to reduce the cost of operation, increase productivity, and encourage the use of renewable energy sources in agriculture.
